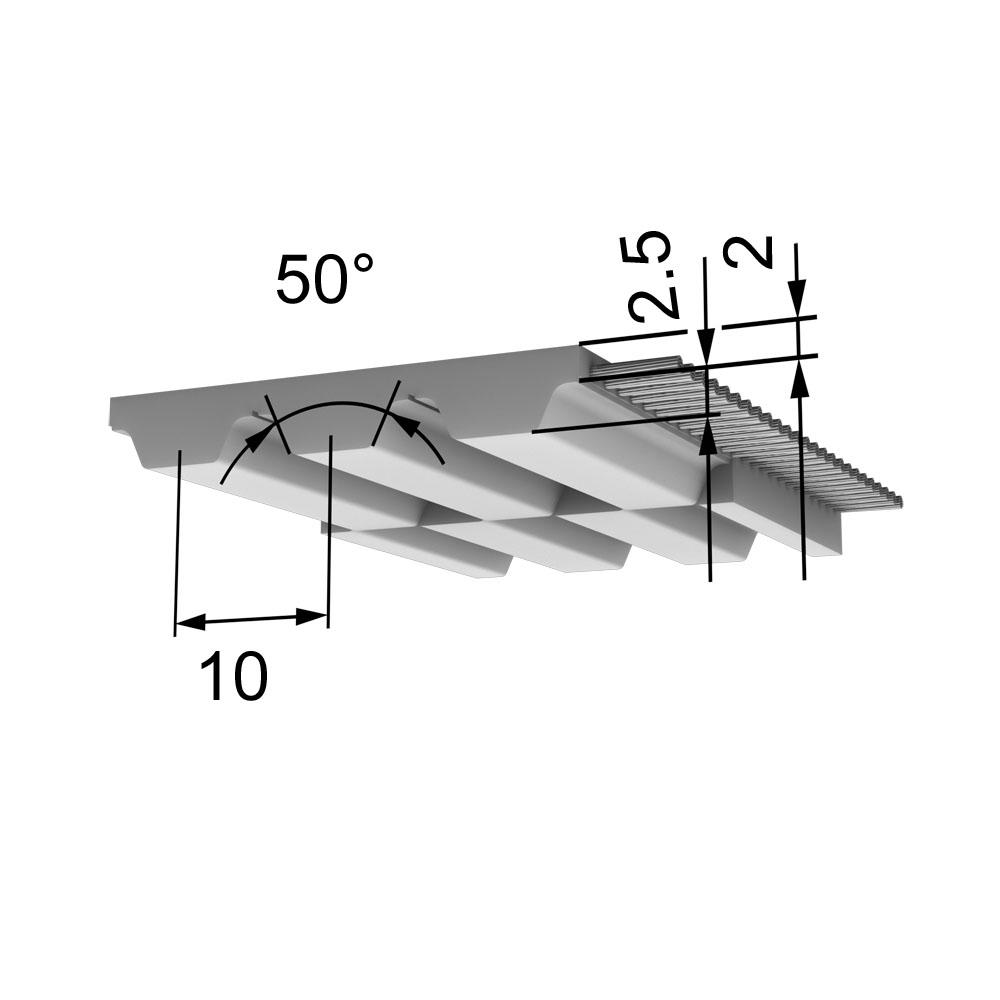

Special pitch / PU timing belt SFAT10
| Parameter | Value |
|---|---|
| Pitch (P) | 10.0 mm |
| Thickness (T) | 4.5 mm |
| Tooth Height (T1) | 2.5 mm |
| Truly Endless Size | 2200–30000 mm |
Description
Product details Timing belt SFAT10
| Specification | Value |
|---|---|
| Timing Belt Material | Steel / Kevlar cord |
| Tolerance in Width | ±0.5 mm |
| Tolerance in Length | ±0.8 mm/m |
| Minimum Pulley Diameter | 80 mm |
| Minimum Counter Flex Diameter | 120 mm |
