Description

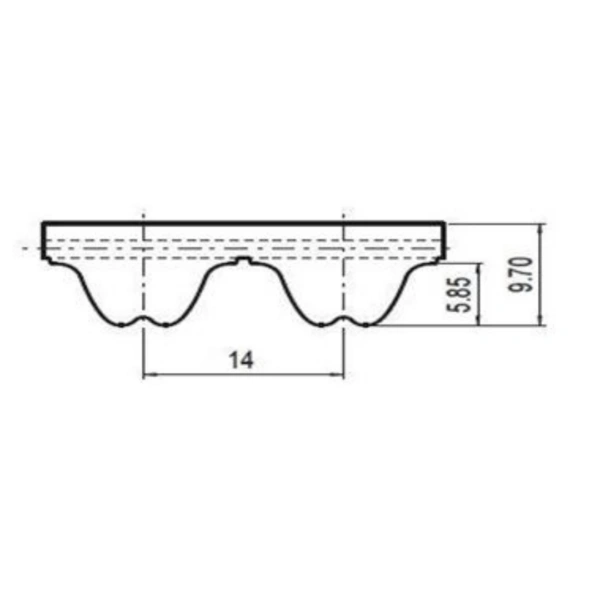

PU Timing Belt RPP14M – Heavy-Duty Power Transmission Belt
| Parameter | Specification |
|---|---|
| Timing Belt Material | Steel / Kevlar cord |
| Tolerance in Width | ± 0.5 mm |
| Tolerance in Length | ± 0.8 mm/m |
| Minimum Pulley Diameter | 140 mm |
| Minimum Counter-Flex Diameter | 200 mm |
For heavy-duty industrial applications, the PU Timing Belt RPP14M is a high-performance timing belt made under HTD, RPP, and STD pitch systems. It is perfect for challenging applications since it is made of high-quality polyurethane material and offers remarkable strength, durability, and accurate motion control.
Why Choose PU Timing Belt RPP14M?
Applications needing high torque and load capacity are the focus of the PU Timing Belt RPP14M. Among the main benefits are:
Increased capacity to handle loads for heavy-duty tasks
High resistance to chemicals, grease, abrasion, and wear
Outstanding tooth profile for effective power transfer
Decreased vibration and noise while operating
Long lifespan with little upkeep
Because of this, it is the recommended option for sectors where dependability is crucial.
Applications of PU Timing Belt RPP14M
The RPP14M timing belt finds extensive application in:
Large machinery, mixers, and crushers are examples of heavy industrial machinery.
Conveyors and bulk handling systems are examples of material handling systems.
Automation and Packaging: High-load coordinated operations
Continuous, fast machinery in the textile and processing industries
High torque transmission systems in automotive and engineering
Key Features of PU Timing Belt RPP14M
- Advanced RPP Tooth Profile: Ensures better load distribution and reduced stress
- High-Strength PU Material: Resistant to wear, oil, and harsh conditions
- Steel / Kevlar Reinforcement (Optional): Enhances tensile strength
- High Efficiency: Reduces energy loss and improves machine performance
- Temperature Resistance: Suitable for demanding environments
