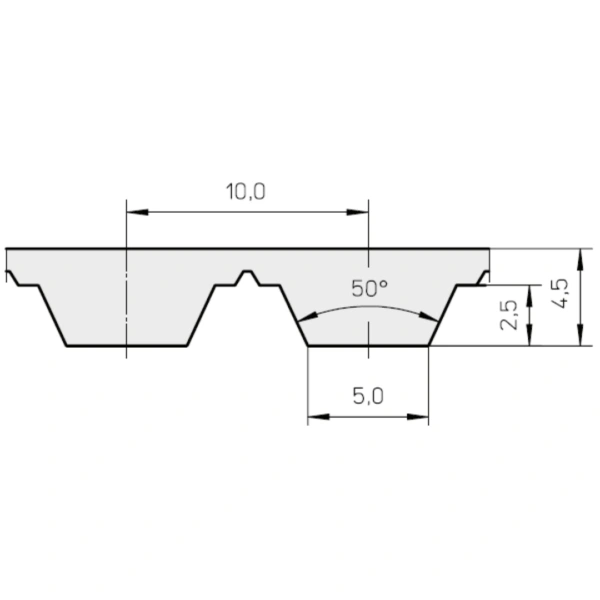

Metric-pitch / PU Timing Belt T10
| Parameter | Value |
|---|---|
| Pitch (P) | 10.0 mm |
| Thickness (T) | 4.5 mm |
| Tooth Height (T1) | 2.5 mm |
| Width (W) | 3.5 mm |
| Truly Endless Size | 2200–30000 mm |
Description
Winproflex Truly endless timing belt has trapezoidal tooth shape and a pitch of 10 mm
Product Information Timing Belt T10
| Parameter | Specification |
|---|---|
| Timing Belt Material | Steel / Kevlar cord |
| Tolerance in Width | ± 0.5 mm |
| Tolerance in Length | ± 0.8 mm/m |
| Minimum Pulley Diameter | 36.35 mm |
| Minimum Counter-Flex Diameter | 60.00 mm |
